The pole is not where Polaris is, and the reticle knows it

The best polar scopes for 2026

A polar scope is a small telescope that sits inside the polar axis of an equatorial mount and shows the region around the celestial pole with a reticle engraved on it. It exists because of a fact that surprises beginners: Polaris is not at the pole. It sits a little away from it and circles it once a day, so pointing the mount straight at Polaris leaves an error large enough to ruin a long exposure. The reticle carries a marked circle or a clock face, and the routine is to work out where on that circle Polaris should be at this date and time and to put it there — which is what turns a rough alignment into one good enough for unguided minutes. The first thing to check is compatibility, because a polar scope is made to fit a particular family of mounts and will not simply drop into another; the fit inside the axis, the retaining ring and the length are all specific. The reticle pattern differs between makers, and some are far easier to use in the cold than others; patterns that show constellations near the pole help confirm that the right star is in view. Illumination has to be dim and adjustable — a bright reticle washes out Polaris itself, which is the classic frustration — and a battery illuminator is one more coin cell to remember. Read whether the reticle supports the southern hemisphere, where there is no convenient bright star at all. We compare reticle pattern, illumination and dimming, mount compatibility, fit and retention, focus adjustment and hemisphere support.

The parts here, column by column

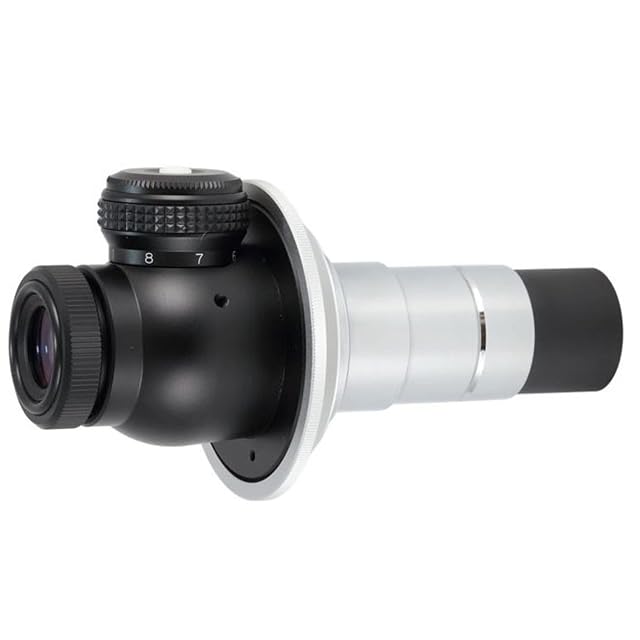

  1. Vixen Polarie PF-L II polar scope

    Vixen Polarie PF-L II polar scope

    A compact polar scope with a published alignment accuracy of 3 arcminutes or better, 5x magnification and a dimmable, self-extinguishing red reticle.

    Reticle pattern
    3 arcminutes or better, as the maker publishes it · Red, dimmable, with automatic shut-off
    Illumination
    Not published by the maker.
    Dimming
    Not published by the maker.
    Mount compatibility
    Not published by the maker.
    Fit
    Not published by the maker.
    Retention
    Not published by the maker.
    Focus adjustment
    5x · 10 degrees
    Hemisphere support
    Not published by the maker.
    Amazon reference
    B07RZ7WMVH (same reference on 6 Amazon marketplaces)
    EAN
    4955295355334
    • The only alignment accuracy figure published anywhere in this family
    • Automatic shut-off on the reticle saves a battery left on after packing up
    • Made for the Polarie system; fitting it to another mount is not addressed

    Best for: A tracker owner who needs alignment good enough for long exposures

    ≈ £231 / €238
    Check price on Amazon

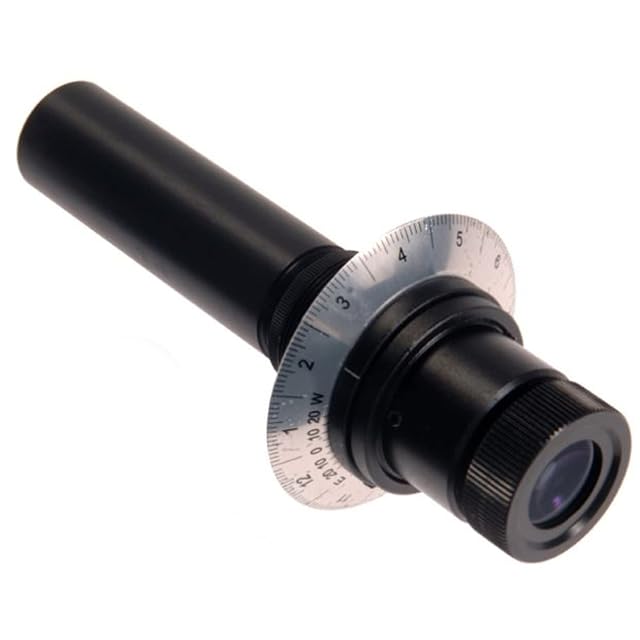

  2. Sky-Watcher HM5 polar scope

    Sky-Watcher HM5 polar scope for EQ5, NEQ-5 and EQ-6

    A polar scope screwing directly into the polar axis of named Sky-Watcher mounts, with a reticle usable in both hemispheres.

    Reticle pattern
    The listing gives none
    Illumination
    Not mentioned
    Dimming
    Not published by the maker.
    Mount compatibility
    EQ5, NEQ-5 and EQ-6, named by the maker
    Fit
    Screws into the polar axis of the mount
    Retention
    Not published by the maker.
    Focus adjustment
    Neither is published
    Hemisphere support
    Northern and southern, per the maker
    Amazon reference
    B017NH3NYC (same reference on 3 Amazon marketplaces)
    EAN
    6930096630154
    • Names the three mounts it fits rather than claiming universality
    • Works in both hemispheres, which not every reticle does
    • No accuracy, magnification or field figure

    Best for: An EQ5, NEQ-5 or EQ-6 mount bought without its polar scope

    ≈ £49
    Check price on Amazon

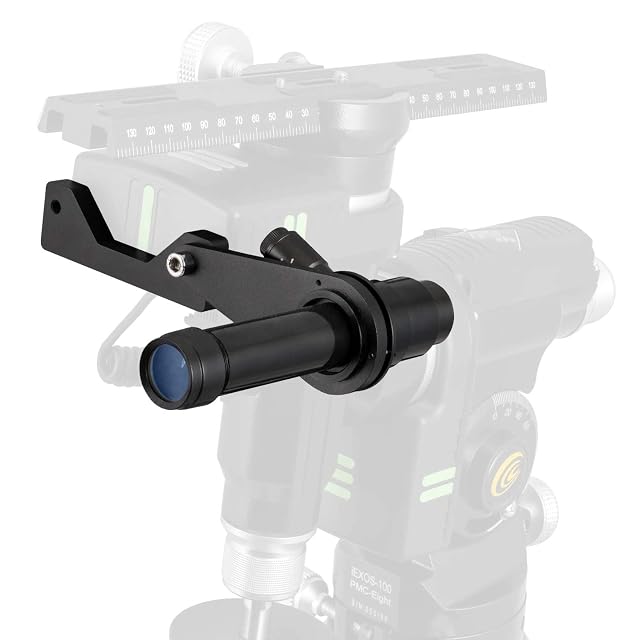

  3. Explore Scientific polar scope for the iEXOS-100 mount

    Explore Scientific Polar scope for iEXOS-100 (0456103)

    A polar scope for the iEXOS-100, listed with a clear explanation of when precise polar alignment is needed and when it is not.

    Reticle pattern
    The listing gives none
    Illumination
    Not published by the maker.
    Dimming
    Not published by the maker.
    Mount compatibility
    iEXOS-100, from the title
    Fit
    Not published by the maker.
    Retention
    Not published by the maker.
    Focus adjustment
    Neither is published
    Hemisphere support
    Not published by the maker.
    Amazon reference
    B085HRSCC6 (same reference on 5 Amazon marketplaces)
    EAN
    4007922062532
    • The listing explains the physics rather than only describing the part
    • It states plainly when a polar scope is not needed, which costs a sale and earns trust
    • No accuracy, magnification or field figure

    Best for: An iEXOS-100 owner moving from visual observing to photography

    ≈ £87 / €76
    Check price on Amazon
  4. Bresser polar scope illuminator with M8 thread

    Bresser Polar scope illuminator M8 × 0.75 (4964212)

    A polar scope illuminator with an M8 × 0.75 thread, whose entire listing consists of its article number.

    Reticle pattern
    Not published by the maker.
    Illumination
    Not published by the maker.
    Dimming
    Not published by the maker.
    Mount compatibility
    Not published by the maker.
    Fit
    M8 × 0.75, from the title
    Retention
    Not published by the maker.
    Focus adjustment
    Not published by the maker.
    Hemisphere support
    Not published by the maker.
    Amazon reference
    B077ZVM1C7 (same reference on 5 Amazon marketplaces)
    EAN
    4007922054216
    • Solves the single commonest problem with a polar scope: an invisible reticle
    • The thread is named precisely, which is what decides whether it fits
    • The listing contains one bullet and it is the article number

    Best for: A Bresser mount whose polar scope reticle cannot be seen against a dark sky

    ≈ €27
    Check price on Amazon

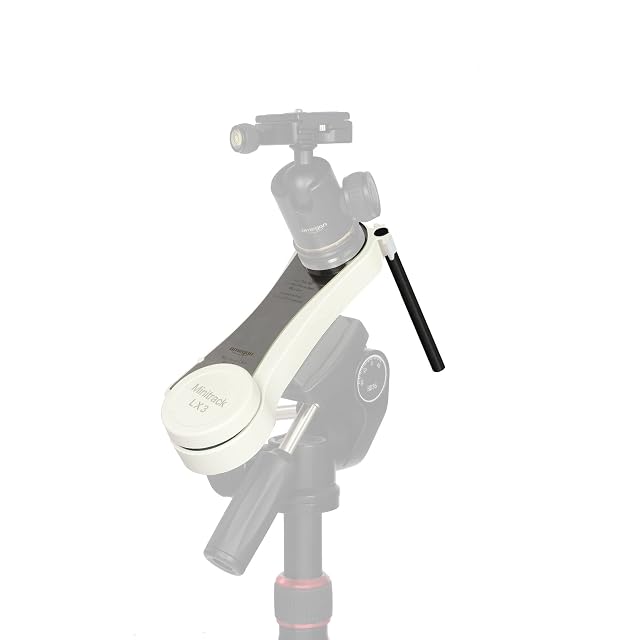

  5. Omegon MiniTrack LX3 Essentials mechanical tracking mount

    Omegon MiniTrack LX3 Essentials

    The entry version of a purely mechanical tracking mount, which replaces the optical polar scope with a simple sighting tube.

    Reticle pattern
    Not published by the maker.
    Illumination
    Not published by the maker.
    Dimming
    Not published by the maker.
    Mount compatibility
    Not published by the maker.
    Fit
    Not published by the maker.
    Retention
    Not published by the maker.
    Focus adjustment
    Not published by the maker.
    Hemisphere support
    Not published by the maker.
    Amazon reference
    B096ZB2FGB (same reference on 5 Amazon marketplaces)
    EAN
    4049467708254
    • The maker states exactly what has been removed to reach the price
    • Mechanical drive, so nothing to charge and nothing to fail in the cold
    • A sighting tube is far coarser than an optical polar scope, which limits exposure length

    Best for: Wide-angle tracked photography where a coarse polar alignment is enough

    ≈ $222 / €150
    Check price on Amazon

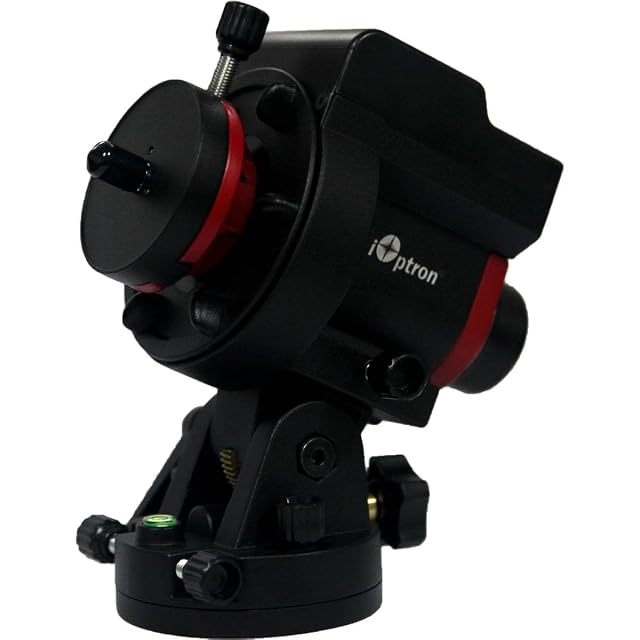

  6. iOptron SkyGuider Pro tracking mount with counterweight

    iOptron SkyGuider Pro

    A tracking mount for cameras and small telescopes, published at five kilograms of capacity, with a thicker RA axis and a counterweight that can be swapped for a second camera.

    Reticle pattern
    Not published by the maker.
    Illumination
    Not published by the maker.
    Dimming
    Not published by the maker.
    Mount compatibility
    Not published by the maker.
    Fit
    Not published by the maker.
    Retention
    Not published by the maker.
    Focus adjustment
    Not published by the maker.
    Hemisphere support
    Not published by the maker.
    Amazon reference
    B07199QMR6 (same reference on 5 Amazon marketplaces)
    EAN
    6943831501855
    • A published payload of five kilograms, which is the figure that sizes a tracker
    • The counterweight can carry a second camera, so two focal lengths run at once
    • It is a mount, and the family heading says polar scopes

    Best for: Tracked wide-field photography with a substantial lens, or a small telescope

    ≈ $359 / €496
    Check price on Amazon

Any figure written into the body of this page was true on the day it was written. The amount shown next to each instrument is requested from the retailer as the page loads, and it is that amount, not the text, that stands.
