Shorter focal length, wider field, shorter exposures

The best focal reducers for 2026

A focal reducer shortens the effective focal length of a telescope, which widens the field of view and lowers the focal ratio at the same time. For imaging, the lower ratio is the point: the same object spreads over fewer pixels and builds signal faster, so an exposure that was marginal becomes practical. For visual use, the wider field is the point, and on a long folded telescope it is the difference between a keyhole and a view. Everything about fitting one comes down to a single unforgiving number, the back focus distance the reducer requires between its own rear surface and the sensor. Too short and the stars stretch outward at the corners, too long and they stretch inward; the reduction factor also drifts with the spacing, so the figure printed on the box is only achieved at the specified distance. Adapters, filter wheels and camera flanges all consume that budget, and it has to be added up before ordering rather than discovered afterwards. Read the image circle the reducer covers against the diagonal of the sensor, since a reducer that suits a small planetary chip will vignette a full-frame one badly. Many reducers also act as field correctors, flattening the curved focal plane of a fast telescope — a separate job, often combined, and worth knowing which you are buying. Read the thread standard at both ends. We compare reduction factor, required back focus, image circle, corrector function, thread standards, vignetting and housing.

The parts here, column by column

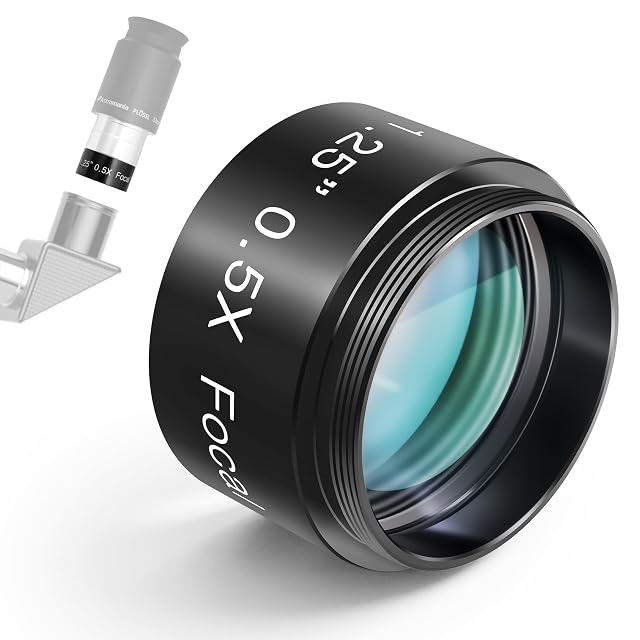

  1. Astromania 0.5x focal reducer in black anodised housing

    Astromania 0.5x focal reducer (RC05X)

    A cemented two-element focal reducer of 85 mm focal length giving about 0.5x depending on spacing, with filter threads on both faces.

    Reduction factor
    About 0.5x, and the maker states it depends on the spacing
    Required back focus
    85 mm, as the maker publishes it
    Image circle
    22.5 mm, as the maker publishes it
    Corrector function
    Focal reducer with optics — two cemented elements
    Thread standards
    Filter thread on both faces; the maker writes it as 28.5 × 0.75 mm, where the convention on this shelf is M28.5 × 0.6
    Vignetting
    Not published by the maker.
    Housing
    Fully multi-coated, per the maker · Black anodised aluminium
    Amazon reference
    B01B2OR280 (same reference on 6 Amazon marketplaces)
    EAN
    6970019292991
    • Publishes its own focal length and clear aperture, which almost no reducer on this shelf does
    • States outright that the factor depends on spacing rather than printing 0.5x as fixed
    • The published thread pitch does not match the usual 1.25 in filter thread

    Best for: A long-focal-ratio telescope with a small sensor or a narrow-field eyepiece

    ≈ $18
    Check price on Amazon

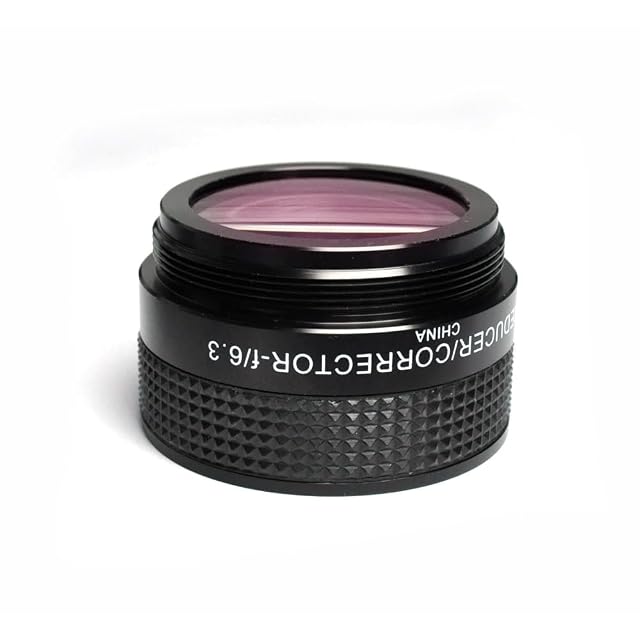

  2. Skyoptikst f/6.3 reducer-corrector with SCT thread

    Skyoptikst f/6.3 reducer-corrector for SCT

    A four-element fully multi-coated reducer-corrector that threads onto the rear cell of a Schmidt-Cassegrain and converts f/10 to f/6.3.

    Reduction factor
    f/10 to f/6.3, as the maker states it
    Required back focus
    The listing gives none
    Image circle
    Not published by the maker.
    Corrector function
    Reducer and field corrector with optics — four elements
    Thread standards
    Schmidt-Cassegrain rear thread
    Vignetting
    Not published by the maker.
    Housing
    Fully multi-coated, per the maker · Aluminium alloy; all optical glass elements per the maker
    Amazon reference
    B0CN9CVSBP (same reference on 6 Amazon marketplaces)
    EAN
    0741754671657
    • Four elements correct the field as well as reducing, which a two-element reducer does not
    • The conversion is published as a pair of focal ratios rather than as a bare factor
    • The required distance to the sensor is not published, and a reducer has no tolerance on it

    Best for: A Schmidt-Cassegrain used for imaging, where f/10 makes exposures impractically long

    ≈ $95 / £93 / €109
    Check price on Amazon

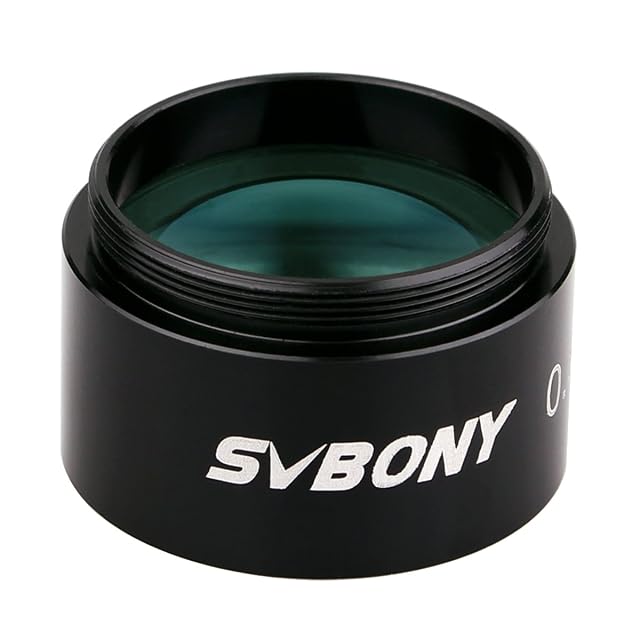

  3. SVBONY 0.5x focal reducer with C-mount adapter

    SVBONY 0.5x reducer with C-mount adapter (SV0.5x)

    A fully multi-coated 0.5x reducer for 1.25 in fittings, supplied with a C-mount adapter for cameras that use that thread.

    Reduction factor
    0.5x, from the title
    Required back focus
    Neither is published
    Image circle
    Not published by the maker.
    Corrector function
    Focal reducer with optics
    Thread standards
    1.25 in (3.2 cm), from the title
    Vignetting
    Not published by the maker.
    Housing
    Fully multi-coated, from the title
    Amazon reference
    B0792XJWFS (same reference on 1 Amazon marketplace)
    EAN
    0609378745560
    • The C-mount adapter suits the small cameras that C-mount threads are found on
    • Fully multi-coated is claimed, which is the strongest of the four coating labels
    • The listing has no description whatsoever beyond its title

    Best for: A small sensor camera with a C-mount thread on a long-focal-length telescope

    Check price on Amazon
  4. VBESTLIFE 0.5x focal reducer in aluminium housing

    VBESTLIFE 0.5x reducer, M28.5 × 0.6

    A 0.5x reducer threading onto the nose of a 1.25 in eyepiece, which the maker states is not recommended for very fast telescopes or wide-angle eyepieces.

    Reduction factor
    0.5x, per the maker
    Required back focus
    Not published by the maker.
    Image circle
    Not published by the maker.
    Corrector function
    Focal reducer with optics
    Thread standards
    M28.5 × 0.6 — the standard 1.25 in filter thread · Screws onto the nose of a 1.25 in eyepiece
    Vignetting
    Not published by the maker.
    Housing
    Aluminium alloy
    Amazon reference
    B07PRN86R5 (same reference on 5 Amazon marketplaces)
    EAN
    0736342781627
    • The thread is named correctly as M28.5 × 0.6
    • The maker states what it is not suitable for, which is unusually honest
    • The bullet text is shared verbatim with another seller’s listing

    Best for: Widening the field of a long-focal-length telescope with a narrow-field eyepiece

    ≈ £12 / €20
    Check price on Amazon

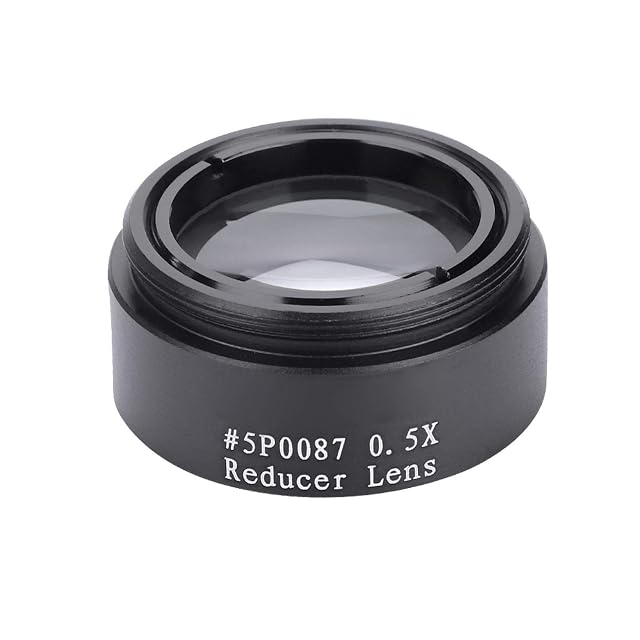

  5. Oumij1 0.5x focal reducer with M28.5 thread

    Oumij1 0.5x reducer, M28.5 × 0.6

    A 0.5x reducer for 1.25 in eyepiece noses in an aluminium housing, with the same stated exclusions as its twin listing.

    Reduction factor
    0.5x, per the maker
    Required back focus
    Not published by the maker.
    Image circle
    Not published by the maker.
    Corrector function
    Focal reducer with optics
    Thread standards
    M28.5 × 0.6 — the standard 1.25 in filter thread · Screws onto the nose of a 1.25 in eyepiece
    Vignetting
    Not published by the maker.
    Housing
    Aluminium alloy
    Amazon reference
    B093ZSLSDJ (same reference on 4 Amazon marketplaces)
    EAN
    9182438203992
    • The thread is named correctly, which several neighbours on this shelf fail to do
    • The exclusions are published rather than discovered
    • Shares its entire description with another listing

    Best for: A second reducer, or a first one where price decides

    ≈ €21
    Check price on Amazon

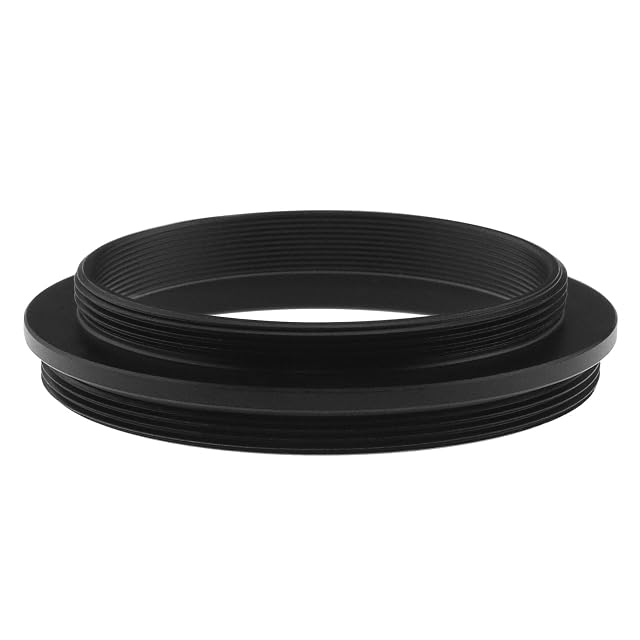

  6. ECSiNG M48 to M42 adapter ring in black anodised aluminium

    ECSiNG M48 to M42 double-male adapter

    An anodised aluminium ring with M48 × 0.75 and M42 × 0.75 male threads, blackened inside, containing no optical element at all.

    Reduction factor
    Not published by the maker.
    Required back focus
    Not published by the maker.
    Image circle
    Not published by the maker.
    Corrector function
    Not published by the maker.
    Thread standards
    M48 × 0.75 and M42 × 0.75, both male
    Vignetting
    Not published by the maker.
    Housing
    Aluminium, black anodised, matt internal wall
    Amazon reference
    B0C773T289 (same reference on 5 Amazon marketplaces)
    EAN
    4895243556683
    • Both threads named with their pitch
    • A matt bore, which reduces the reflections a shiny adapter introduces
    • It reduces nothing: the category is wrong and this page says so

    Best for: Joining a female M48 component to a female T2 one

    ≈ £10 / €12
    Check price on Amazon

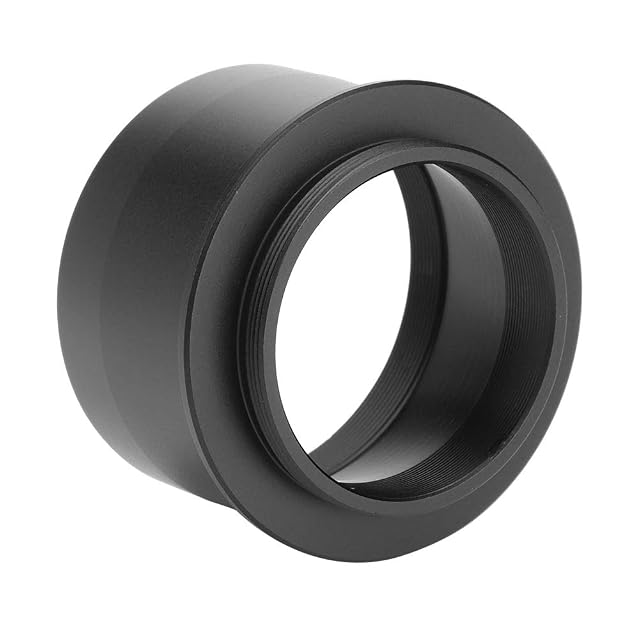

  7. EBTOOLS 2 inch to T2 telescope camera adapter

    EBTOOLS 2 in to T2 adapter

    A 2 in nosepiece adapter carrying a T2 male thread for the camera and an M48 internal thread for a filter, with a fully matted bore.

    Reduction factor
    Not published by the maker.
    Required back focus
    Not published by the maker.
    Image circle
    Not published by the maker.
    Corrector function
    Not published by the maker.
    Thread standards
    2 in nosepiece for a 2 in focuser · M42 × 0.75 male — the T2 thread · M48 × 0.75 internal, at the front
    Vignetting
    “Full frame with 2 inch, no dark corners”, as the maker states it
    Housing
    Fully matted internal thread; black hard-anodised outside
    Amazon reference
    B07MCH2CVN (same reference on 5 Amazon marketplaces)
    EAN
    0719527383403
    • Carries an M48 filter thread at the front, so a 2 in filter fits in the same part
    • Fully matted bore, which matters immediately in front of a sensor
    • The no-dark-corners claim is made without naming a sensor size

    Best for: Putting a T2-threaded camera into a 2 in focuser with a filter in the path

    ≈ £15 / €15
    Check price on Amazon

Any figure written into the body of this page was true on the day it was written. The amount shown next to each instrument is requested from the retailer as the page loads, and it is that amount, not the text, that stands.
